Hey All,

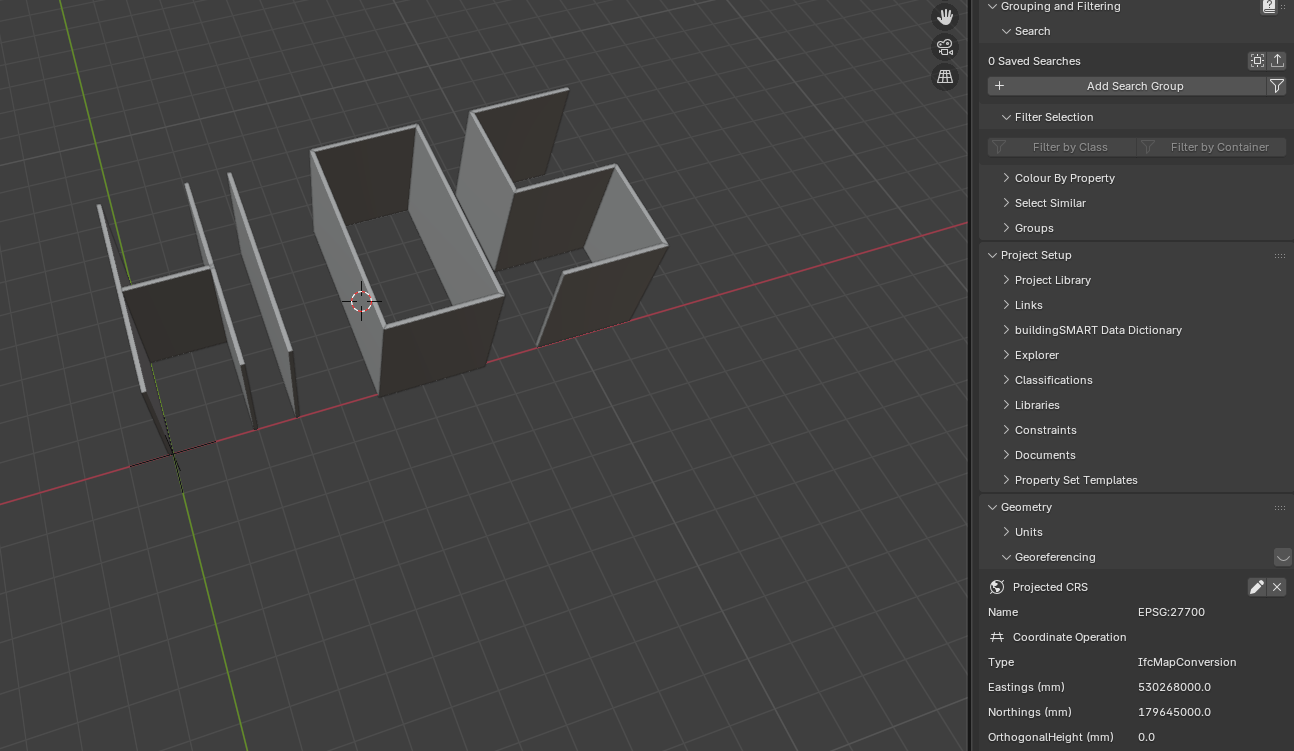

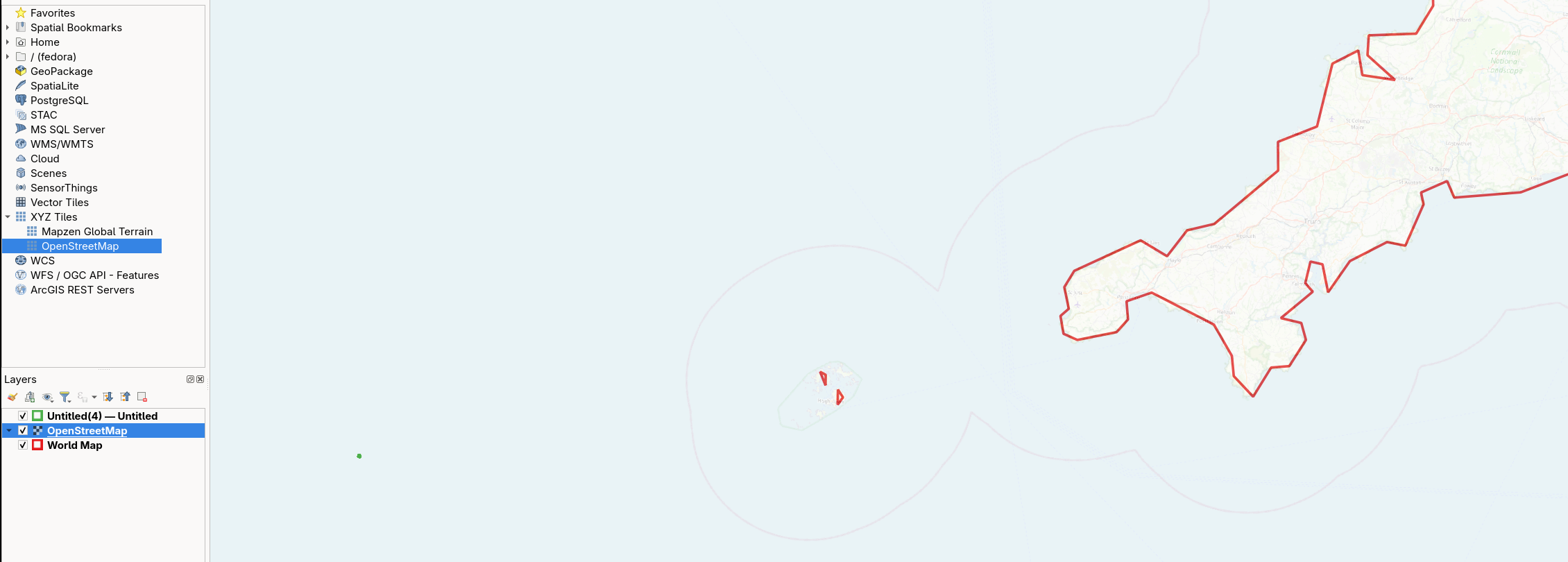

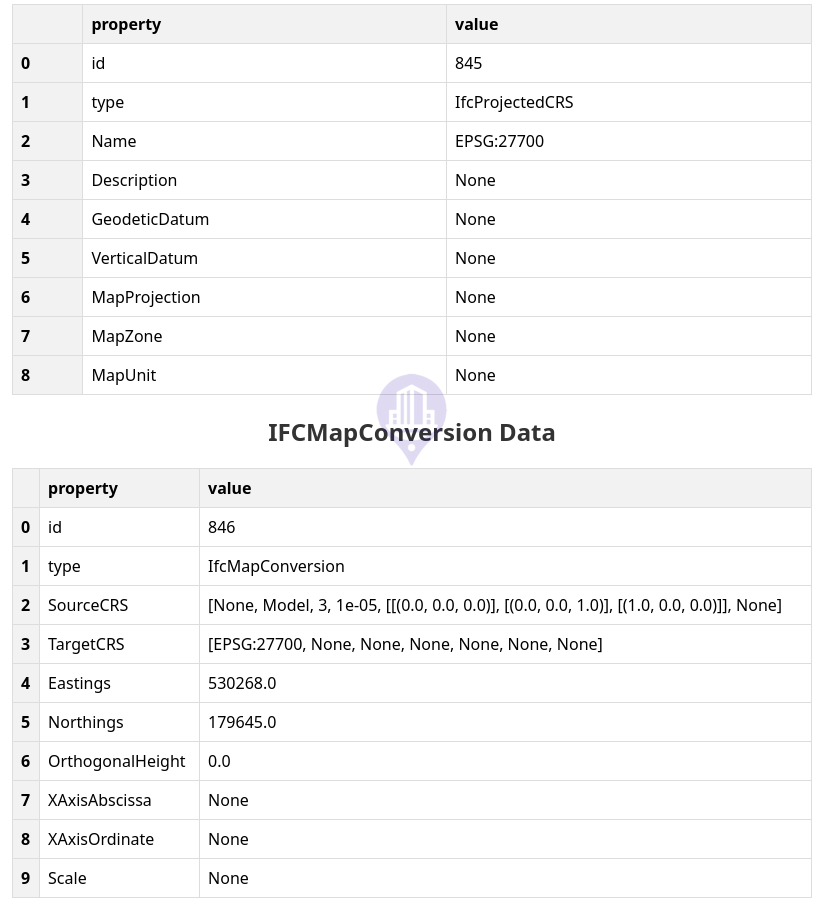

I'm currently tinkering with Bonsai to see if I can get it to play ball with QGIS. I've created a brand new file and added some basic walls in after setting the CRS to be EPSG:27700 (UK) to a real location 530268(Northings)/179645 (Eastings) to see how this loads via this plugin that converts it to an GeoPackage (Link: https://citygeometrix.com/ifc2gis/). I've validated that the IFC has the correct EPSG and E/N on this website (https://ifcgref.bk.tudelft.nl/upload). However when I load on the map or into QGIS it loads the file in the middle of the ocean! Am I missing something obvious?


Tagged:
KoAra

Comments

  • steverugisteverugi

    @bsmith
    I don't think the converter is working, I also tried with some dummy element and

    • Json: ignores the georeferencing (but the size looks OK)
    • GPKG: size is way too big (100000x) but georeferencing is sort of OK

    even in the video georeferencing wasn't working either
    he imports the converted json and drags it to destination, so maybe it's still a work in progress?

    Let's hope others here have a better feedback

    bsmithOwura_qu
  • bsmithbsmith

    Ah okay - good to know it's not me causing the issue (well it still could be). Would be interested to know if others have the same problem - if so I'll raise an issue on their git.

  • wrongbutfasterwrongbutfaster

    I don't generally use Bonsai but eastings and northings are typically given in metres but it looks like the bim model is in mm. Try multiplying your eastings and northings each by 1000 to convert to mm in your BIM model before putting it through the IFC converter?

  • steverugisteverugi

    @wrongbutfaster
    yes, makes sense to have Easting/Northing in m
    In my test above I converted the file to m and adjusted the E/N values, in both cases (x1000 in the same file as you propose or export it to m) the result is the same

  • MoultMoult

    Yeah just chipping in that the eastings and northings look incorrect (i.e. they look like meters, but the unit says mm). If you want you can have project units in mm but map units in m by specifying the scale value in the georeferencing settings.

    atomkarincaBedsonsteverugiKoAraOwura_qu
  • bsmithbsmith

    Thanks Dion I assumed it picked up the Project Units (mm) and converted it to M.

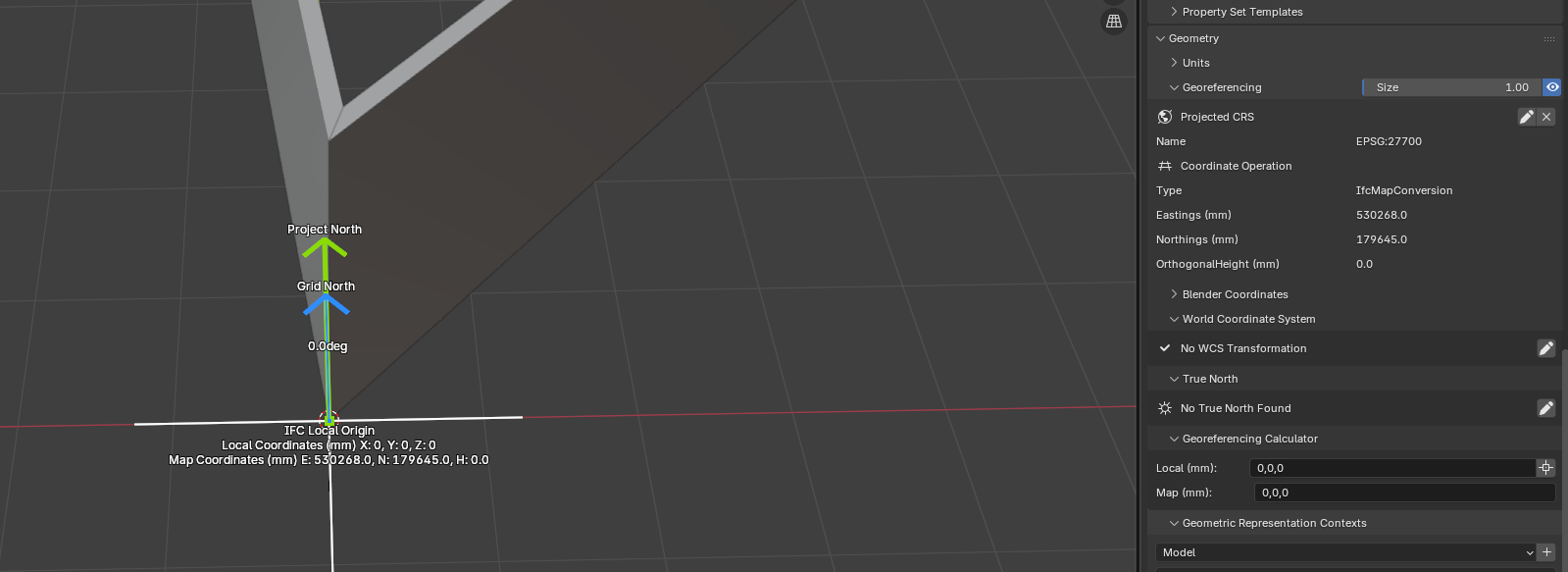

    Currently when a project is created (mm) that gets hardcoded into the MapUnit property as millimetre (unable to change in GUI). Should this be ignored and the value input in Coordinate Operation simply as Meters?

  • bsmithbsmith

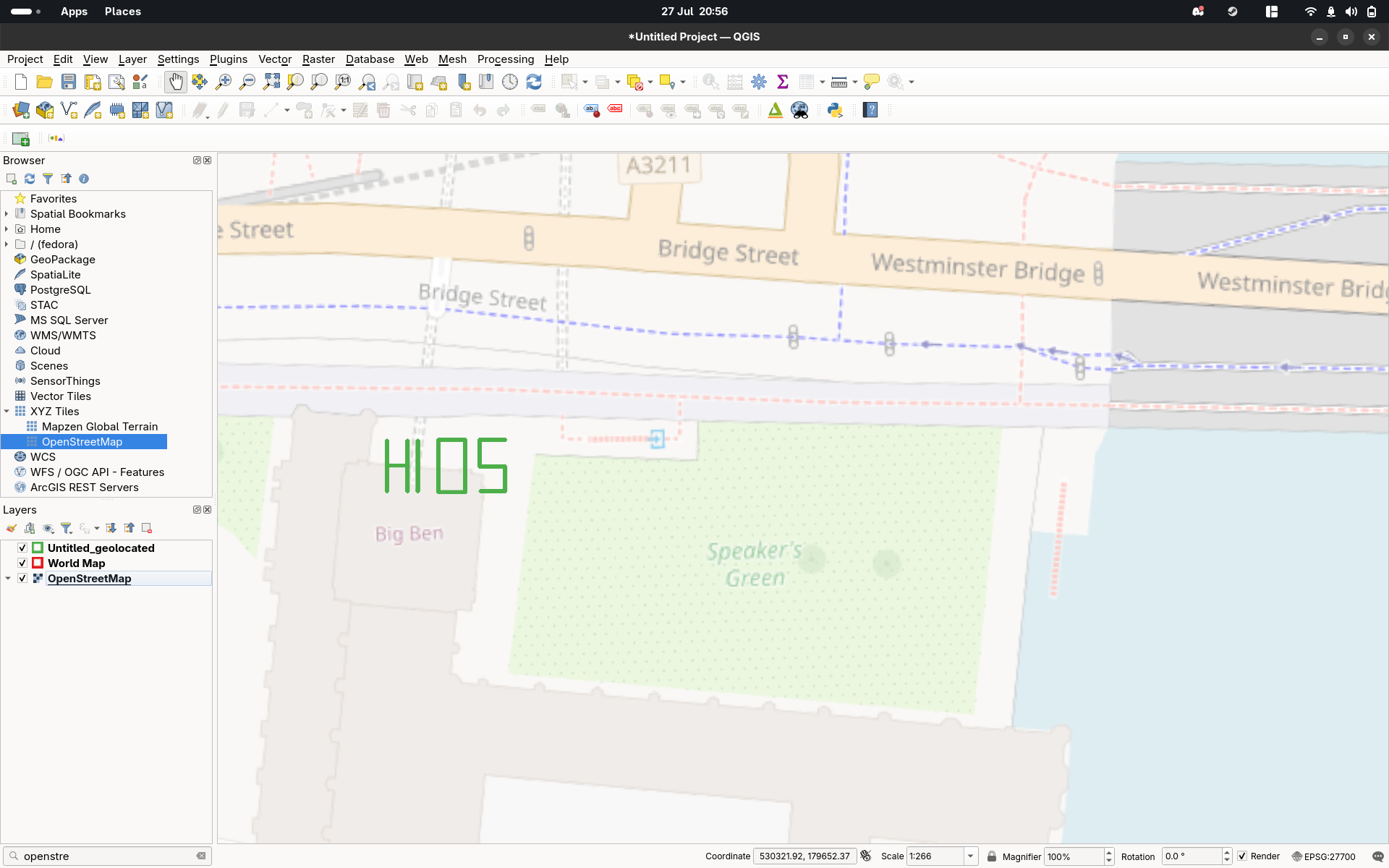

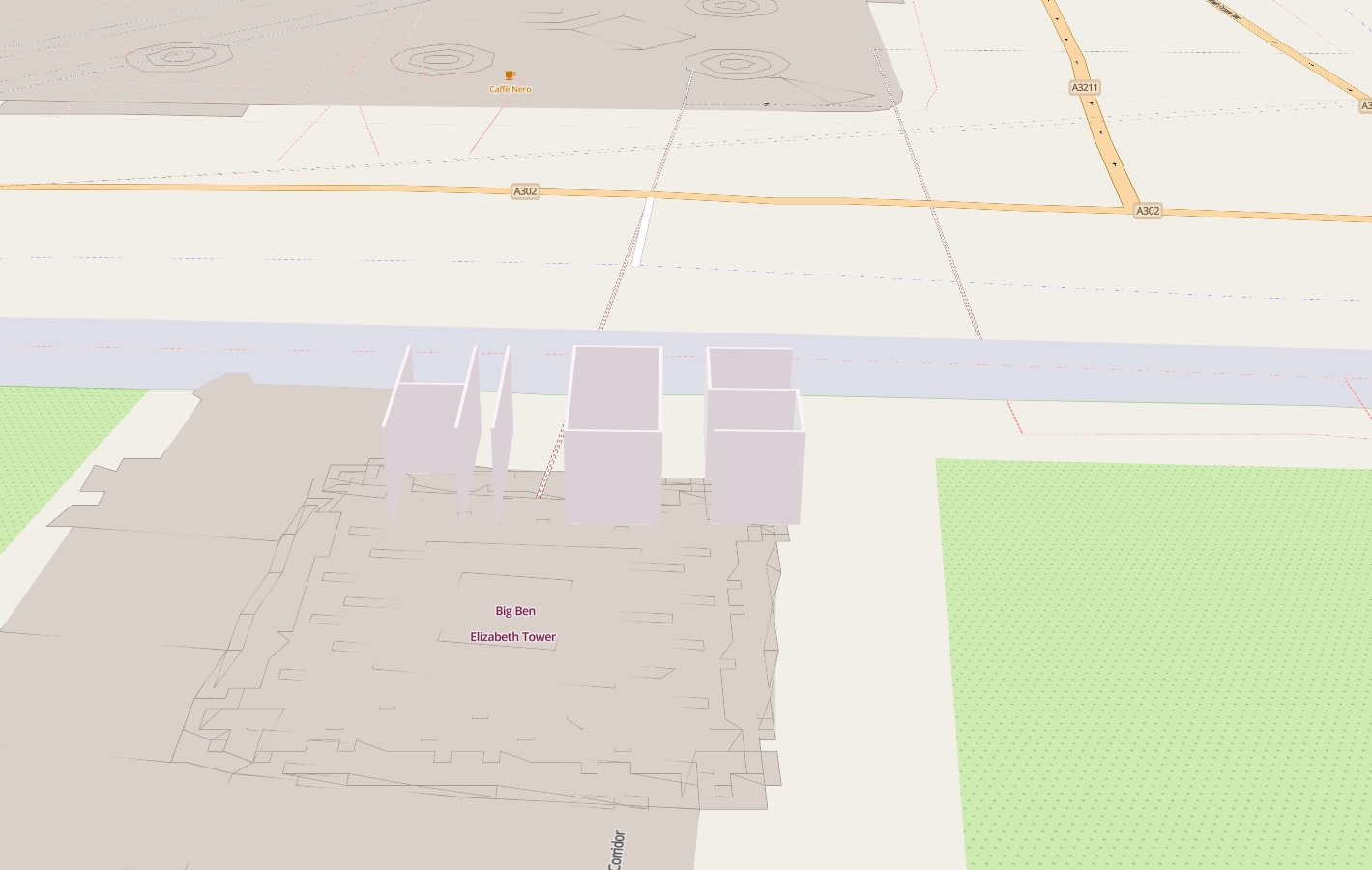

    Ah I was converting it the wrong way...x1000 (not /1000) correctly geolocates it (here: https://ifcgref.bk.tudelft.nl/):


    Looks like the bug is indeed in the Ifc2Geopackage (although it may be more of an issue with Geopackage/GeoJSON than their script https://gis.stackexchange.com/questions/407679/does-geojson-not-support-different-projections)
    Will keep digging in case others are interested!

    Bedsonzoomerwalpaatomkarinca
  • steverugisteverugi

    @bsmith
    I didn't know that viewer , very handy, thanks

    bsmithwalpaFalkeng
  • bsmithbsmith

    So update from me, the dev managed to find the root issue within web-ifc viewer (bug https://github.com/ThatOpen/engine_web-ifc/issues/1404). The translation and rotation described in IFCMAPCONVERSION were not being applied to the geometries extracted by web-ifc. The dev put a temp-fix in to the live tool (https://citygeometrix.com/ifc2gis/) and now it correctly exports to geojson which can be loaded into QGIS:

    MassimosteverugiOwura_quJohnatomkarincacondurJanFwalpaBimETS
  • magicalcloud_75magicalcloud_75

    I'm trying a view thing but georefecering seem ignored on import Qgis with geojson.

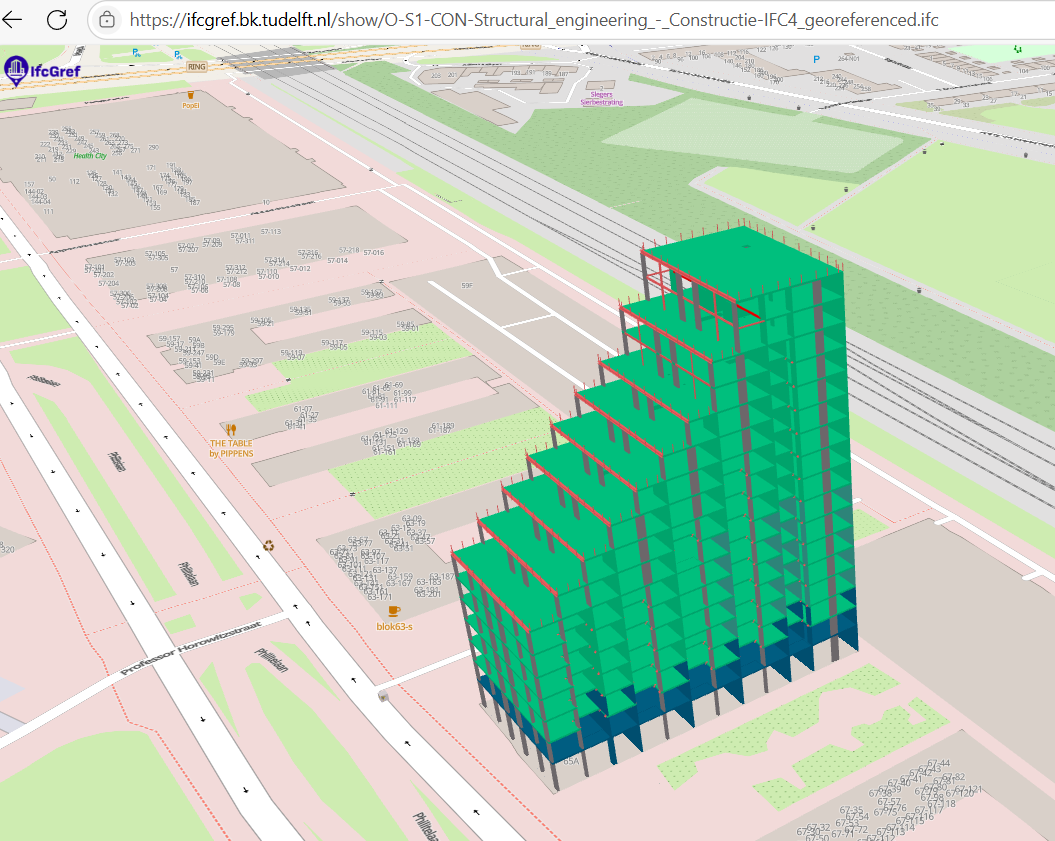

    Can you place this anything in the Netherlands for me? EPSG 28992
    Models can be found here. Or a pre-georeferenced one attached.
    https://github.com/buildingsmart-community/Community-Sample-Test-Files/blob/main/IFC 2.3.0.1 (IFC%202x3)/SDK%20-%20S1/README.md

    steverugiKoAra
  • JohnJohn

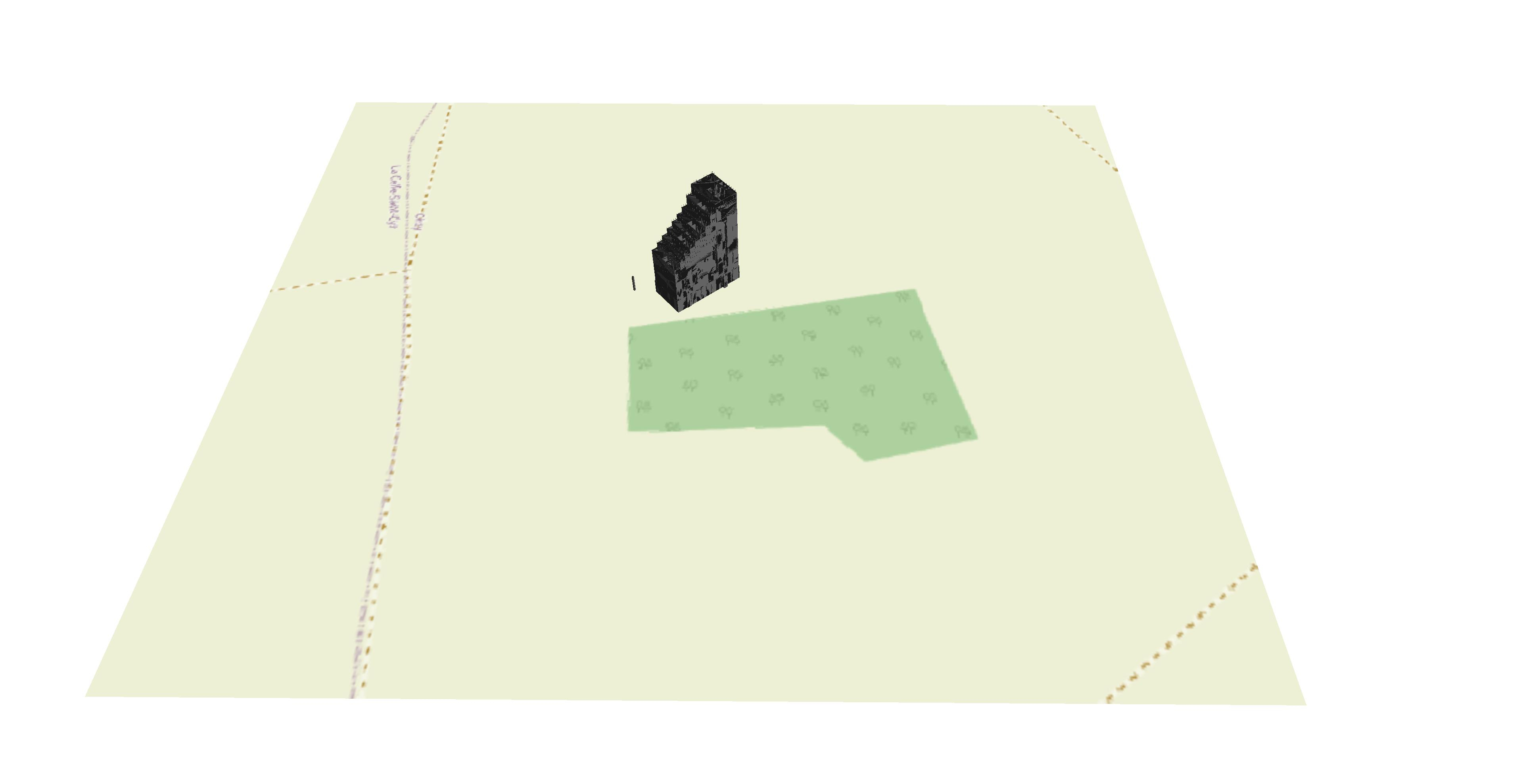

    @magicalcloud_75 I had a play with your attached .ifc. It converted via https://citygeometrix.com/ifc2gis/ into a GeoPackage that loaded into QGIS at the correct elevation:

    However, the given coordinates place it somewhere in France.
    Note, as Dion advises above, the Scale needed setting to '1' in Blender, the .ifc re-saved etc before converting to GeoPackage. I'm not sure if that affects the location too.

    BimETSbsmith
  • abdou3dgisabdou3dgis

    Hey folks, I am the dev of ifc2gis and it's a pity that I missed this (relatively old) thread.

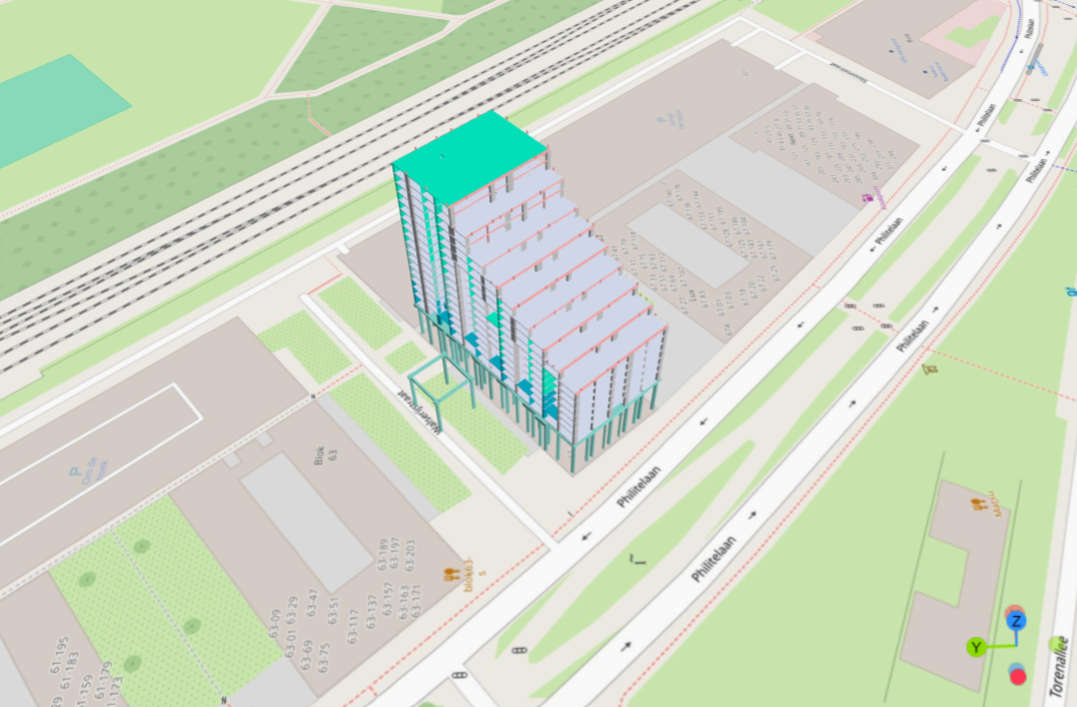

    Indeed, there were some issues with the management of georeferencing with GeoPackage exports. They have been fixed now in the new version of the tool (https://ifc2gis.com/app). I tried the model provided here and it lands at the right place.

    steverugiwalpaMassimozoomeratomkarinca
  • steverugisteverugi

    @abdou3dgis

    Hey folks, I am the dev of ifc2gis and it's a pity that I missed this (relatively old) thread.
    Indeed, there were some issues with the management of georeferencing with GeoPackage exports. They have been fixed now in the new version of the tool (https://ifc2gis.com/app). I tried the model provided here and it lands at the right place.

    thanks

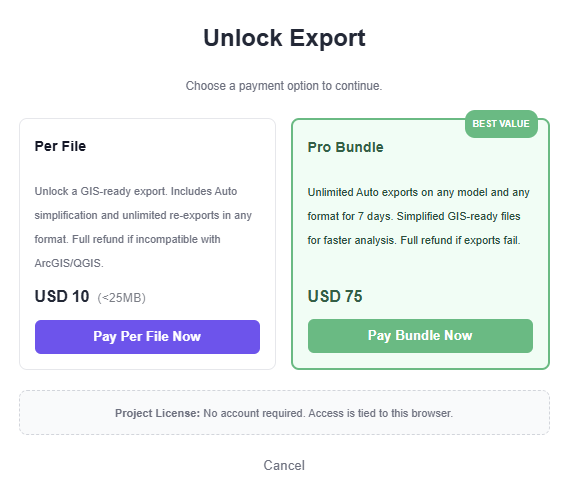

    you might want to mention that now the webapp is paid version?
    cheers

    Nigel
  • abdou3dgisabdou3dgis
    edited February 17

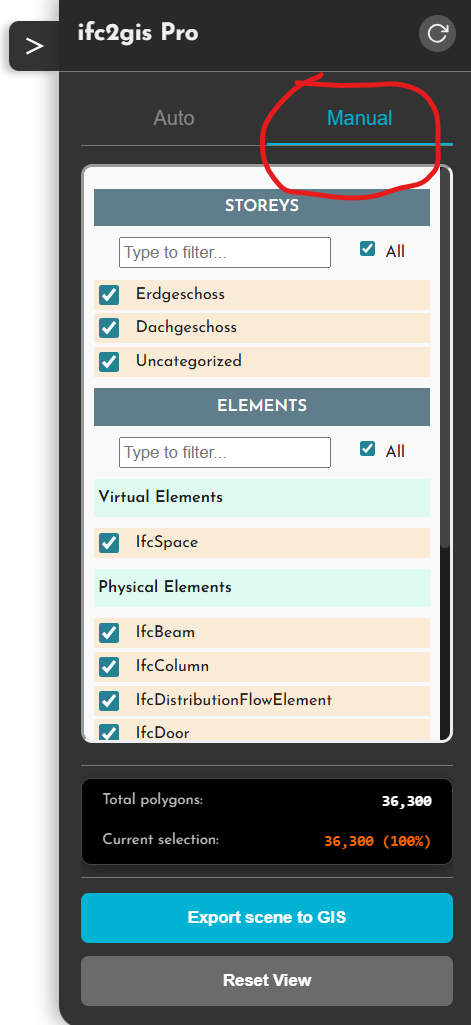

    Only the Auto simplification pipeline and SHP exports are paid. The Manual filtering workflow (which is the improved version of the previous tool), is still free. The GPKG and GeoJSON exports are not affected, (plus you get the viewer and the poly count stats, so this is really an improved version :-) )
