Drawing perspective is not showing in SVG File

Antonio_DiasAntonio_Dias
in General

Hi
I' am trying to generate a perpective drawing in SVG file and I am not getting the result. Tha SVG page appears all in blank. I tried to edit the position of the IFCCamera and generates again, baut no result of this drawing.
A tutorial showing gerenrate the plan view it is OK, but the perspective view is another result

Tagged:
walpa

Comments

  • carlopavcarlopav
    edited May 2025

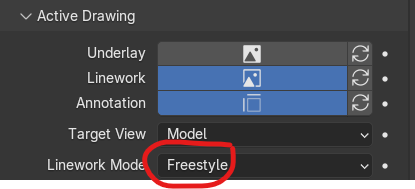

    Hello @Antonio_Dias ! did you try to set the linework mode to Freestyle?

    PS I also do not remember how to set the view to perspective, I'm only able to make it orthographic :)

    Antonio_DiasAce
  • GorgiousGorgious

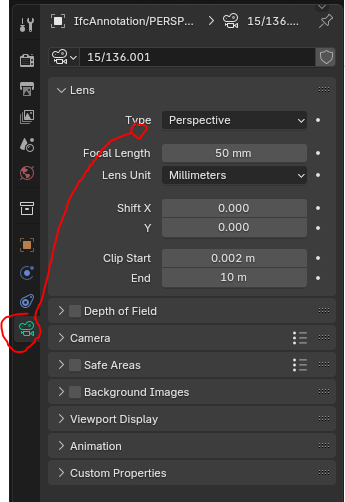

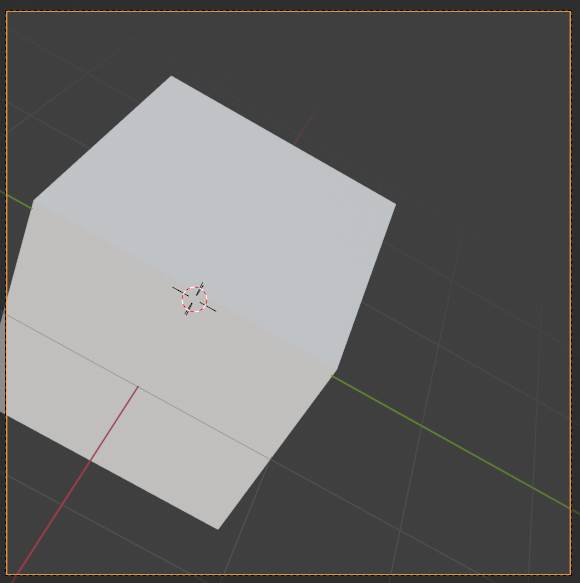

    You can set the view to perspective with the vanilla camera properties. I tested it and set it to freestyle and seems to work. However took something like 2 mins to spew out this simple cube so you may want to go make a coffee after clicking on the button.

    carlopavwalpaMassimoBedson
  • Antonio_DiasAntonio_Dias

    @carlopav said:
    Hello @Antonio_Dias ! did you try to set the linework mode to Freestyle?

    PS I also do not remember how to set the view to perspective, I'm only able to make it orthographic :)

    Thank for the answer. I did some tests and I had the same result. Just in orthographic...

  • Antonio_DiasAntonio_Dias

    @Gorgious said:
    You can set the view to perspective with the vanilla camera properties. I tested it and set it to freestyle and seems to work. However took something like 2 mins to spew out this simple cube so you may want to go make a coffee after clicking on the button.

    Thank you @Gorgious ...in my tests i had result only in orthographic...I will continue doing tests

  • Antonio_DiasAntonio_Dias

    @carlopav said:
    Hello @Antonio_Dias ! did you try to set the linework mode to Freestyle?

    PS I also do not remember how to set the view to perspective, I'm only able to make it orthographic :)

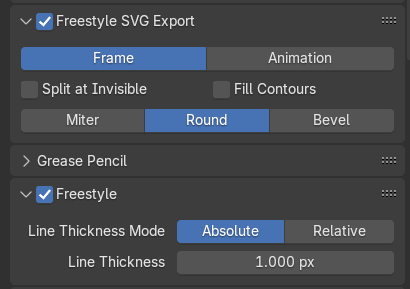

    Dear @carlopav I did not notice and I did not have the Add-On the Blender Freestyle Exporter SVG installed...now I had the first result
    Thanks a lot man

  • theoryshawtheoryshaw
    edited May 2025

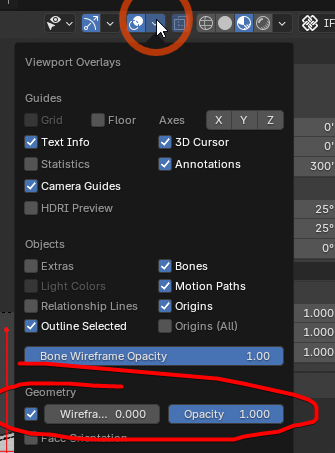

    If you're okay without wireframe edges, you can use overlay, and it works in OpenCASCADE linework mode.

    Also, you can turn on the following.... and it will get you 'rastered' linework.

    Antonio_Dias
  • AmerigoAmerigo

    Please what is exactly the workflow?..It's all in blank

    walpa
  • Antonio_DiasAntonio_Dias

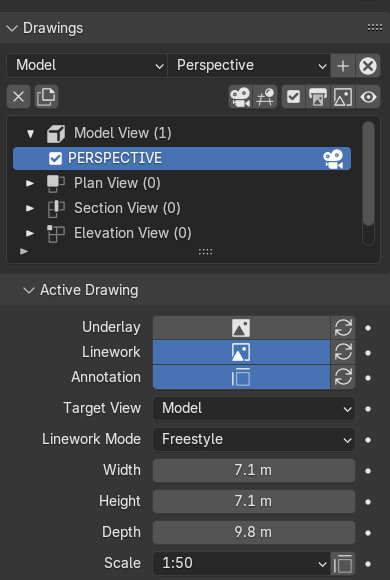

    Dear @Amerigo ...you have to download the addon Freestyle export SVG in Blender Bonsai...after that enable freestyle in options of Drawing Perspective

    steverugiMassimowalpa
  • AmerigoAmerigo
    edited May 2025

    I've done that...!
