Bonsai not having IfcFacilityPart, only IfcFacilityPartCommon

Hey people :)
Is there a reason why Bonsai doesnt let IfcFacilityPart creation?

steverugi

Comments

  • edited May 6

    Because it's an 'abstract supertype'. An abstract supertype is a class (or entity) that cannot be instantiated directly in a model...it exists to define common attributes and relationships that are shared by its subtypes
    https://ifc43-docs.standards.buildingsmart.org/IFC/RELEASE/IFC4x3/HTML/lexical/IfcFacilityPart.htm

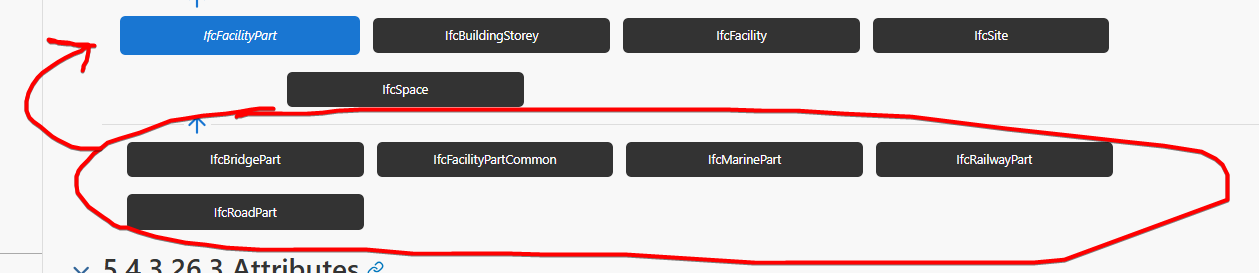

    All the following are a subtypes of the IfcFacilityPart supertype...

    MassimosteverugiKoAraJanFGorgiousMahshidMotieAce
  • One issue:
    While IfcFacilityPart is an abstract, like many others (e.g., IfcRoot, IfcObject, IfcTypeObject, etc.), there is still a need to be able to edit/apply values to attributes (e.g., IfcSpatialStructureElement.CompositionType) from which the instantiated object/container (e.g., IfcFacilityPartCommon) must inherit.

    How is that best handled in Bonsai?

    KoAra
  • You should be able to edit all attributes including inherited ones. Is it not showing up in your attributes panel?

    KoAra
  • edited May 13

    @jwouellette

    While IfcFacilityPart is an abstract, like many others (e.g., IfcRoot, IfcObject, IfcTypeObject, etc.), there is still a need to be able to edit/apply values to attributes (e.g., IfcSpatialStructureElement.CompositionType) from which the instantiated object/container (e.g., IfcFacilityPartCommon) must inherit.

    How is that best handled in Bonsai?

    maybe like this? I'm too trying to figure out infraworks spatial breakdown with IFC4x3..

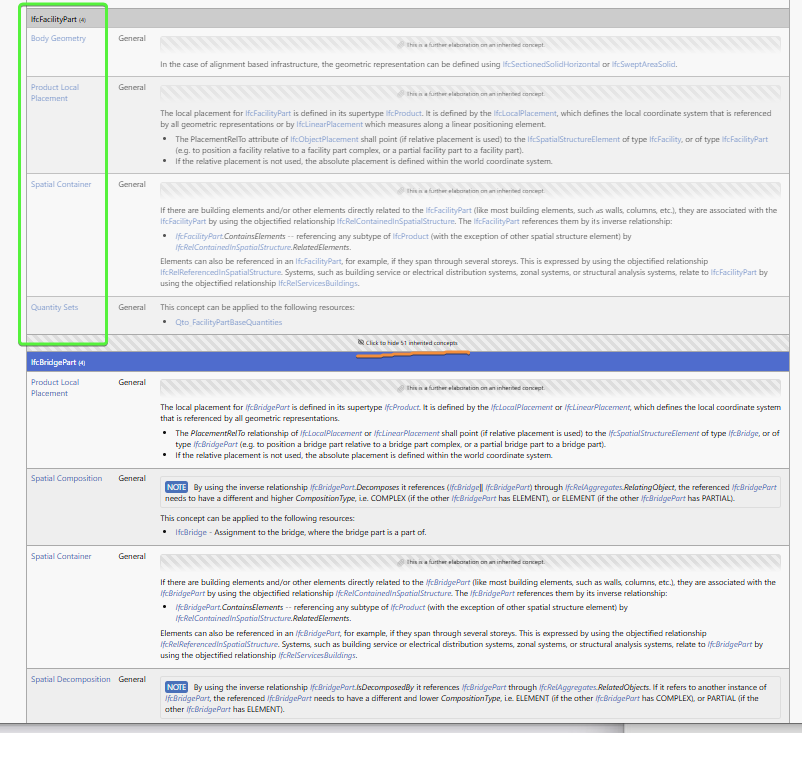

    more info on IfcFacilityPart can be viewed by expanding the part:

    KoAra
  • edited May 13

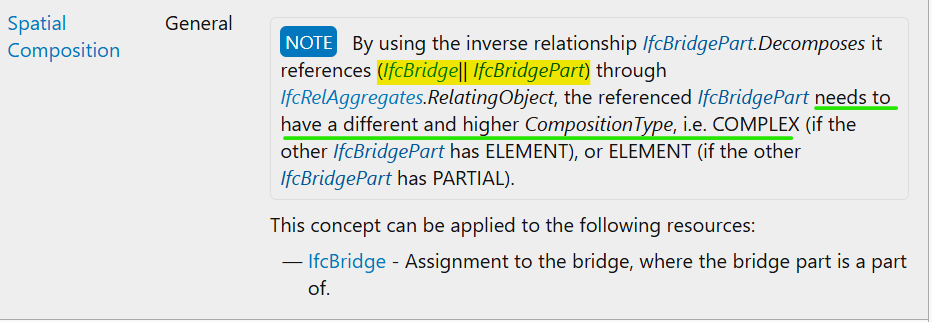

    I take this opportunity to highlight that, my interpretation of what indicated in the IfcBridgePart page, an IfcBridgePart can be embedded in another IfcBridgePart, seemingly not available in Bonsai atm
    the condition for such decomposition is that the parent one must have "COMPLEX" -> with child = "ELEMENT" as CompositionType, or "ELEMENT" -> "PARTIAL"

    please see the following:

    @Moult kindly advise, should I report it as an issue? thanks

    walpaKoAra
  • In the US, we're revisiting how Bridges and all their parts are best represented. Our latest proposals:


    We are clear, and have verified with bSI, that the "Optional" scenario works, but we're more interested in the new "Primary" and the use of IfcFacilityPartCommon... which doesn't have a parent IfcFacility.

    walpa
  • edited May 13

    @steverugi The rules of what is allowed to be contained in what is taken from 4.1.4.1.4 Spatial Composition of the IFC documentation. According to that document, indeed IfcBridgePart is not allowed to be in another IfcBridgePart. This contradicts what's in the IfcBridgePart documentation. So it's either a bug in the IFC documentation, or a bug on our end, or both. I suspect it's both, as historically CompositionType has always allowed decomposition of the same class. I'll file a bug with buildingSMART, and please also file a bug on our end to support it.

    https://github.com/buildingSMART/IFC4.3.x-development/issues/956

    @jwouellette your issue is similar to what @steverugi mentioned - the buildingSMART specification 4.1.4.1.4 does not allow a IfcFacilityPartCommon to be inside an IfcSite, and therefore Bonsai doesn't allow it either. The entire interface in Bonsai is built to follow the spec quite strictly, so if you'd like to deviate here the best thing to do is to run a script in the built-in Blender Python console which can override the constraints of the interface. Let me know if you'd like to go this route.

    walpaKoAra
  • edited May 14

    Hi @Moult thanks for your feedback, much appreciated

    so if you'd like to deviate here the best thing to do is to run a script in the built-in Blender Python console which can override the constraints of the interface.

    I did share something similar in my post here

    issues/6709

    cheers

    KoAra
