Modeler Trilogy Viewer / ERP

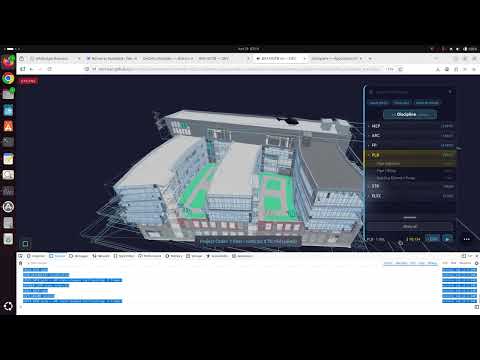

I am slowly solving the 3-Body Problem, where previously i integrated BIM 4D5D Viewer handoff to ERP Project Order, but lacking the Modeller itself which was not priority as anyone can drop the IFC into the BIM Viewer. But after learning that indeed Autodesk Revit has serious modelling issues, it spurred me to begin creating one. I am not sure if i can finish this century but a thousand yards begins with an mm.

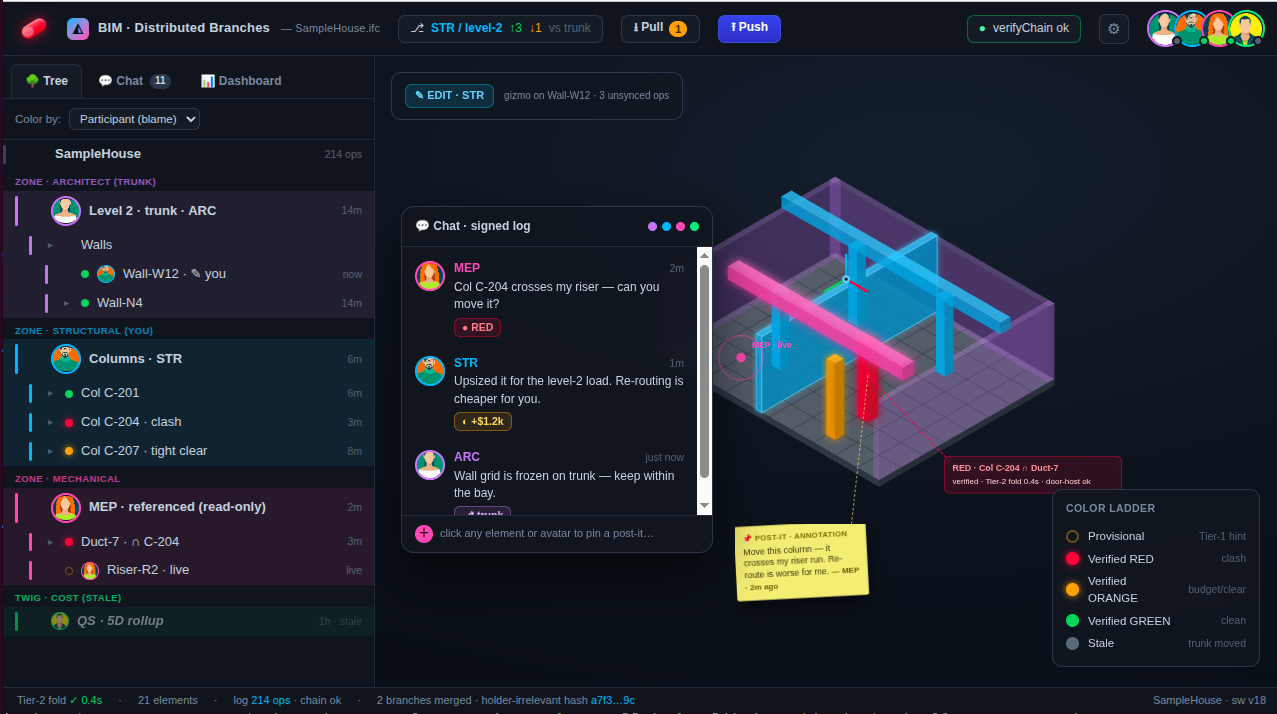

This modeller similarly created in SQLite WASM op log Event Source non server or installer requirement will enjoy history Git like traversing with no impediment or need of integration. Its most powerful across the trilogy feature thus shall be the Blue Dot forecast of any budget resolution and merging two timeline positions.

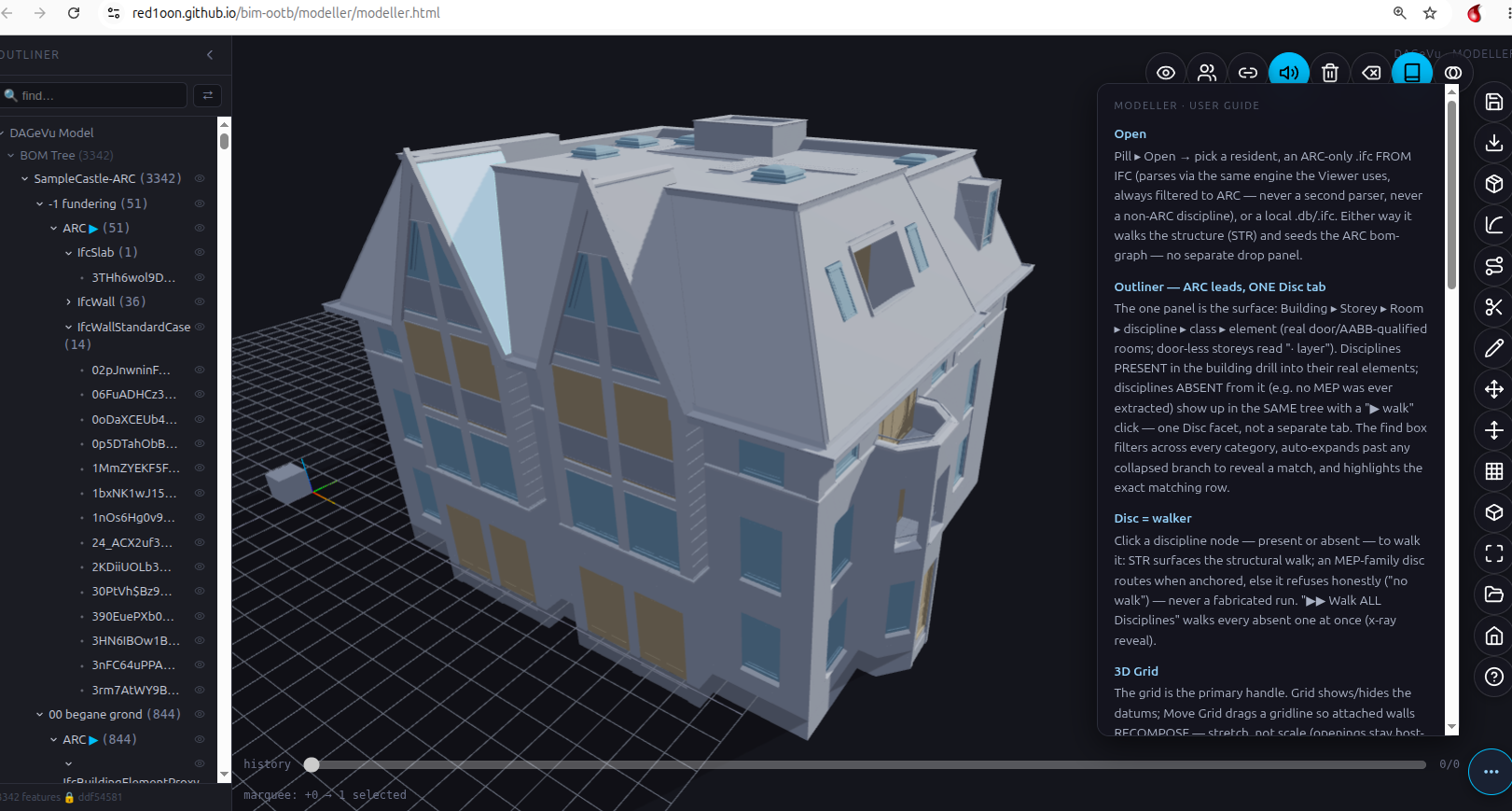

This is very alpha, you may access via its other door https://red1oon.github.io/bim-ootb/viewer/modeller.html Any idea is welcome.
Comments

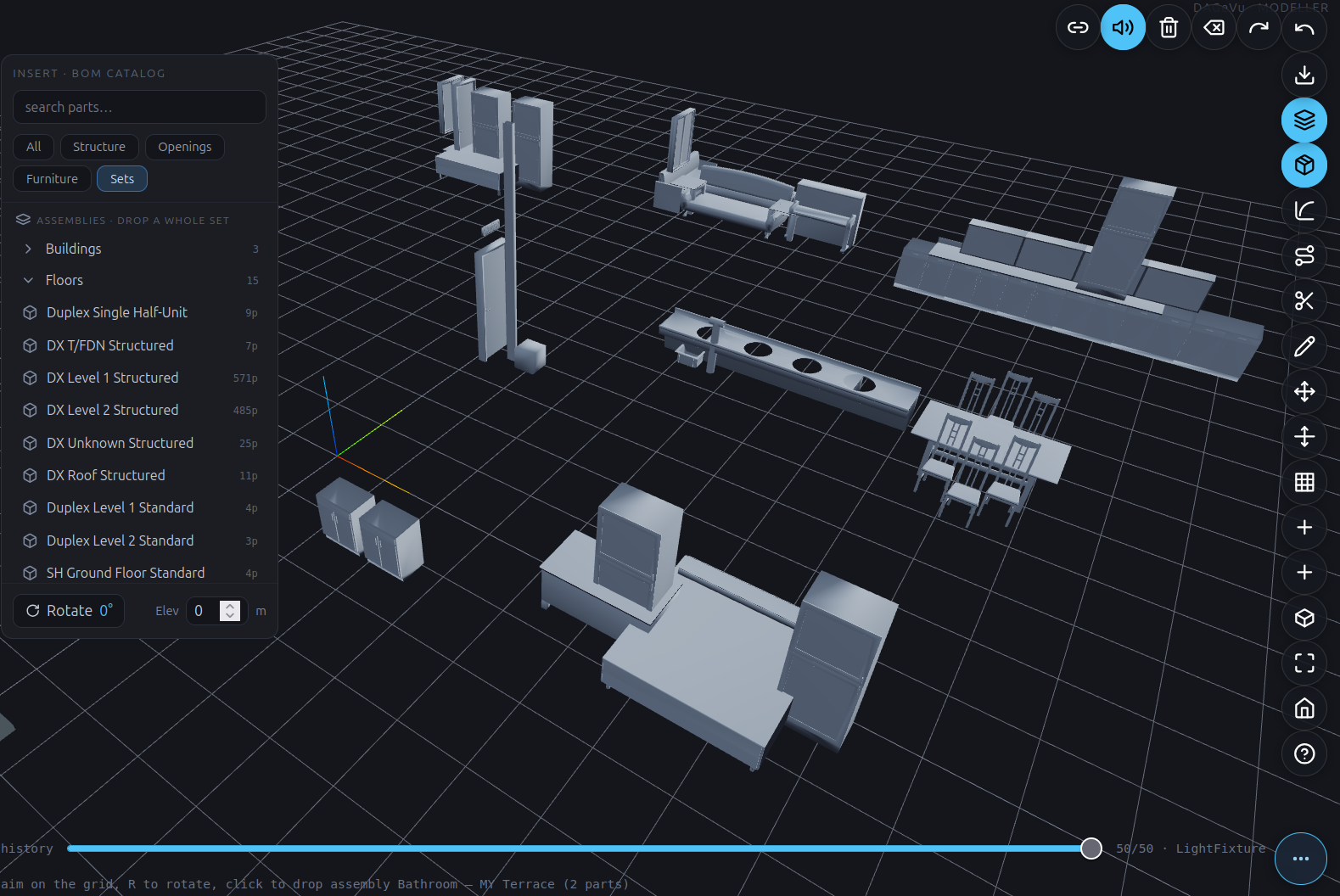

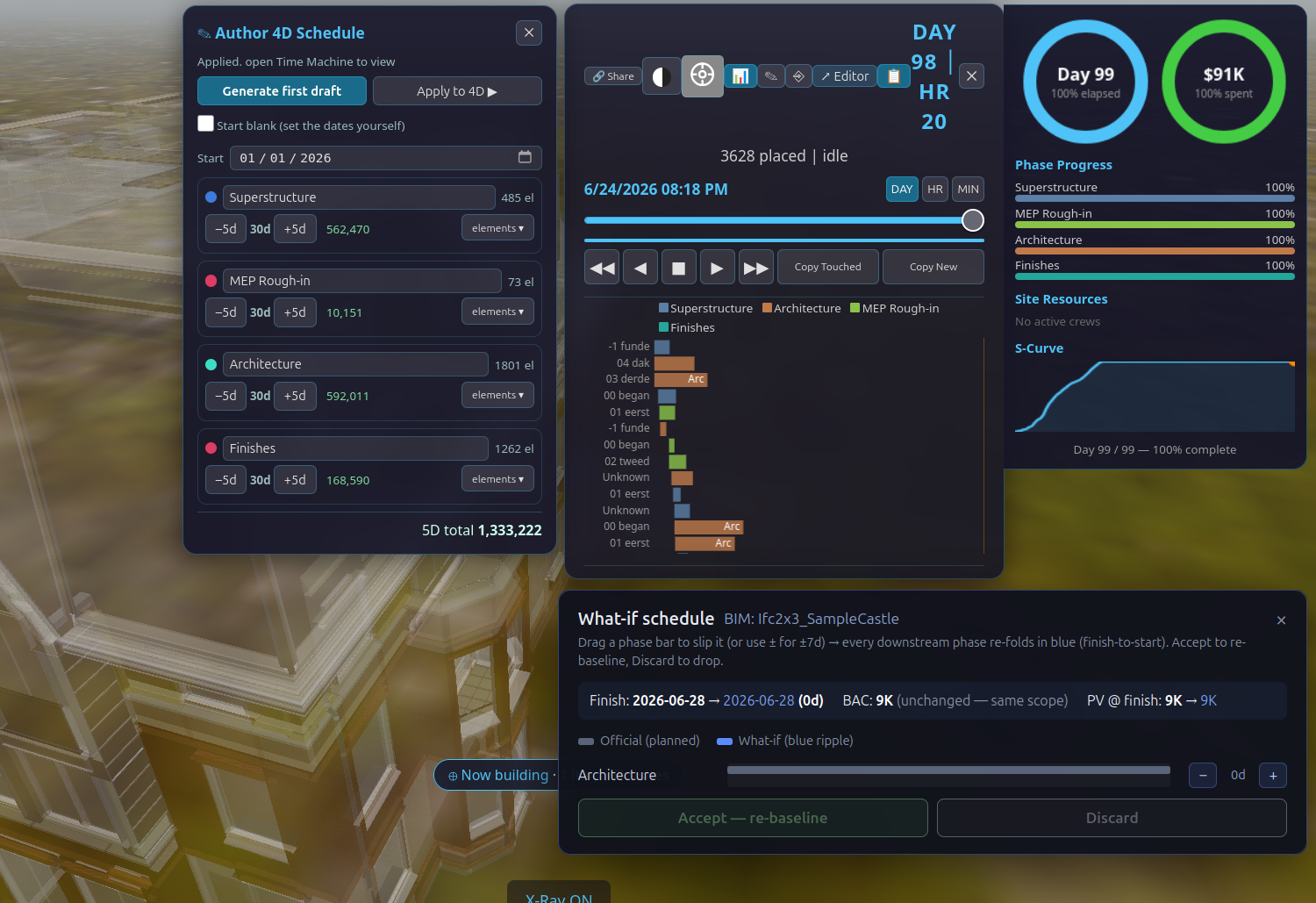

It is progressing steadily getting the BOM (Build of Materials) compilation of Rosetta Stones (reference real IFC construction) to be used in the modeller. Still struggling with getting the already proven spatial relationship, stubbornly refused to parse perfectly onto canvas. Once done, the 2D Grid overlay will be in use here besides the usual fine picking around. Finally it be connected to the 4D5D Viewer and ERP side to correlate budget costing in a 'blue dot' forecast variation for 360 user experience. Try out the WIP: https://red1oon.github.io/bim-ootb/viewer/modeller.html
